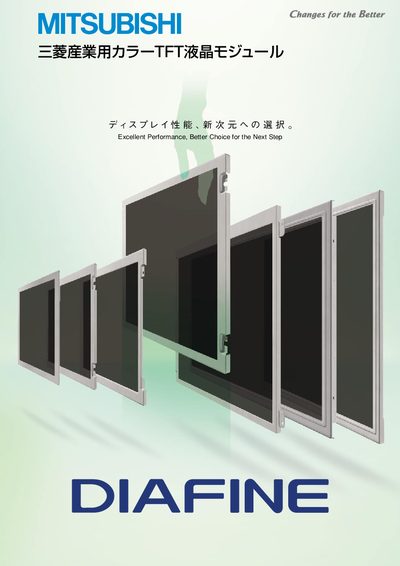

Mitsubishi Industrial Color TFT-LCD Module 'DIAFINE' is a high-performance LCD display module suitable for various devices and machines. It features optimal design, high reliability, and real color display.
The DIAFINE series provides industrial‑grade color TFT‑LCD modules for Human‑Machine Interface applications such as ATMs, POS terminals, and NC machines. Designed for optimal design, high reliability, and real‑color display, the modules are suited to harsh environments and a wide temperature range.
The catalogue lists a broad lineup of sizes from 4.3" to 17.5" and three outdoor‑use variants – low‑reflection, high‑brightness compact, and transflective models – together with detailed specifications for each model number. This manual is written in Japanese.
| Operating Temperature Range | -30 °C to 80 °C |
|---|---|
| Resolution (AA175TB01 model) | 1280 × 768 |
| Low‑Reflection Model Feature | Suppresses bright reflection |
| Transflective Model Feature | Low power consumption and excellent sunlight visibility |
Three outdoor variants are provided: a low‑reflection model, a high‑brightness compact model, and a transflective model designed for sunlight visibility.
The modules operate from –30 °C up to 80 °C, with some products rated from –20 °C to 70 °C.
The AA175TB01 model supports a resolution of 1280 × 768 pixels.
