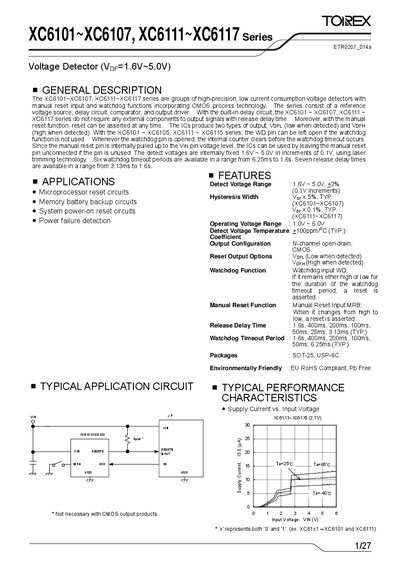

XC6101~XC6107, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input and watchdog functions incorporating CMOS process technology.
The XC6101‑XC6107 and XC6111‑XC6117 series are high‑precision, low‑current voltage detectors with manual reset and watchdog functions, built using CMOS process technology. They integrate a reference voltage source, delay circuit, comparator, and output driver, offering two output types (VDFL low when detected, VDFH high when detected) and optional watchdog functionality.
The datasheet details pin assignments for SOT‑25 and USP‑6C packages, electrical characteristics such as detect voltage range, operating voltage, current consumption, and timing parameters, as well as typical application circuits and marking rules. It also includes absolute maximum ratings, environmental specifications, and RoHS compliance information.
| Operating Voltage Range | 1.0 V ~ 6.0 V |
|---|---|
| Output Current | 20 mA |
| Watchdog Timeout Periods | 6 periods, 6.25 ms ~ 1.6 s |
| Release Delay Times | 7 times, 3.13 ms ~ 1.6 s |
| Operational Temperature Range | -40 °C ~ +85 °C |
| RoHS Compliance | EU RoHS compliant, lead‑free |
Six watchdog timeout periods are provided, ranging from 6.25 ms to 1.6 s.
Yes, they are EU RoHS compliant and lead‑free.
