XBS104S14R-G is a Schottky barrier diode with a maximum reverse peak voltage of 40V, an average forward current of 1A, a forward voltage of 0.49V, and a reverse current of 4μA. The reverse recovery time is 25ns.

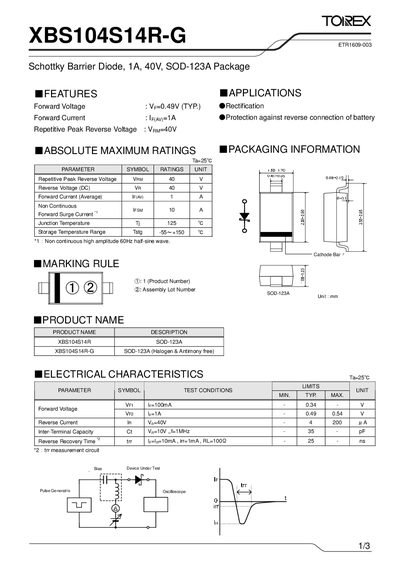

The XBS104S14R-G is a Schottky barrier diode offered by Torex Semiconductor Ltd. It is designed for rectification and protection against reverse battery connection, featuring a typical forward voltage of 0.49 V at 1 A and a reverse voltage rating of 40 V.
Key specifications include a maximum forward current of 1 A, a surge current capability of 10 A, junction temperature up to 125 °C, and a storage temperature range from –55 °C to +150 °C. The device is supplied in an SOD‑123A package and includes detailed performance curves for voltage, current, and temperature dependencies.
| Typical Forward Voltage (at 1 A) | 0.49 V |
|---|---|
| Maximum Reverse Voltage | 40 V |
| Average Forward Current | 1 A |
| Forward Surge Current | 10 A |
| Junction Temperature | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
The typical forward voltage is 0.49 V at a forward current of 1 A.
The diode can withstand a reverse voltage of up to 40 V.
It should be stored between –55 °C and +150 °C.
