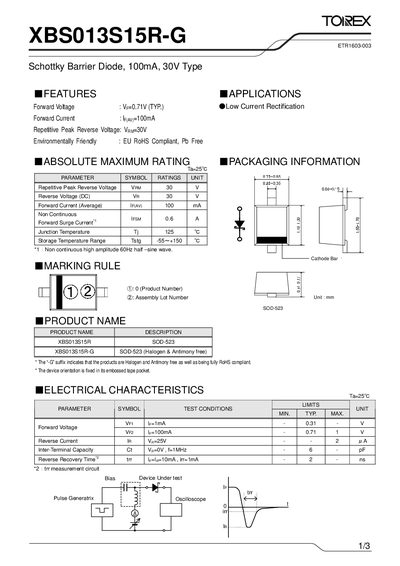

XBS013S15R-G is a Schottky diode, with a rated forward current of 100mA and a reverse peak voltage of 30V. It can operate in a temperature range of -55~150℃.
The XBS013S15R-G is a Schottky barrier diode offered in an SOD‑523 surface‑mount package. It features a typical forward voltage of 0.71 V at 100 mA, a maximum average forward current of 100 mA, and a reverse voltage rating of 30 V. The device is halogen‑ and antimony‑free, meeting EU RoHS requirements.
Designed for low‑current rectification applications, the diode operates from –55 °C to +150 °C storage temperature and up to 125 °C junction temperature. Its compact SOD‑523 footprint and marked tape pocket orientation simplify automated assembly.
| Forward Voltage (typical, IF=100 mA) | 0.71 V |
|---|---|
| Reverse Voltage (DC) | 30 V |
| Repetitive Peak Reverse Voltage | 30 V |
| Junction Temperature (max) | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Package | SOD‑523 |
| RoHS Compliance | Halogen and antimony free |
The diode is rated for a reverse voltage of 30 V.
It is intended for low‑current rectification applications.
The typical forward voltage is 0.71 V at 100 mA forward current.
