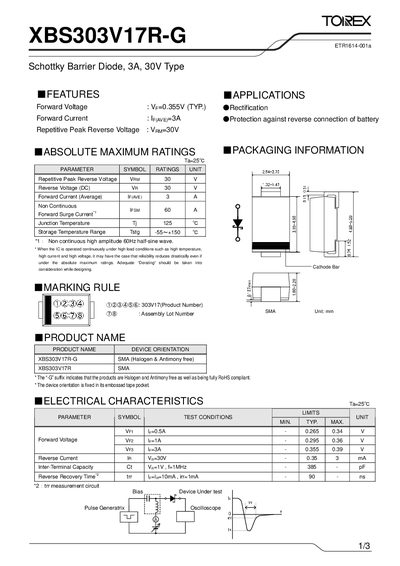

This document is the technical parameters of XBS303V17R-G Schottky Diode, including packaging form, pin direction, polarity, rated voltage, rated current, reverse recovery time, etc.
The XBS303V17R-G is a Schottky barrier diode rated for 3 A forward current and 30 V reverse voltage. It is supplied in an SMA package that is halogen‑ and antimony‑free, making it fully RoHS compliant. Typical applications include rectification and protection against reverse battery connection.
The datasheet lists absolute maximum ratings such as a forward current of 3 A (average) and 60 A non‑continuous, a repetitive peak reverse voltage of 30 V, and a junction temperature limit of 125 °C. Electrical characteristics cover forward voltage, reverse current, inter‑terminal capacitance, and reverse recovery time, while packaging information specifies storage temperature range and device orientation.
| Forward Voltage (typical) | 0.355 V |
|---|---|
| Forward Current (average) | 3 A |
| Repetitive Peak Reverse Voltage | 30 V |
| Reverse Voltage (DC) | 30 V |
| Reverse Current (at 30 V) | 0.35 mA |
| Inter‑Terminal Capacitance | 385 pF |
| Reverse Recovery Time | 90 ns |
| Maximum Junction Temperature | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Package Type | SMA (Halogen & Antimony free) |
The diode can handle an average forward current of 3 A and a non‑continuous surge of up to 60 A.
It is intended for rectification and for protecting against reverse connection of a battery.
Yes, the ‘‑G’ suffix indicates the product is halogen‑ and antimony‑free and fully RoHS compliant.
