This document describes the features and characteristics of the XBS203V17R-G brand's Schottky Barrier Diode, including parameters such as forward voltage, reverse current, and reverse recovery time.

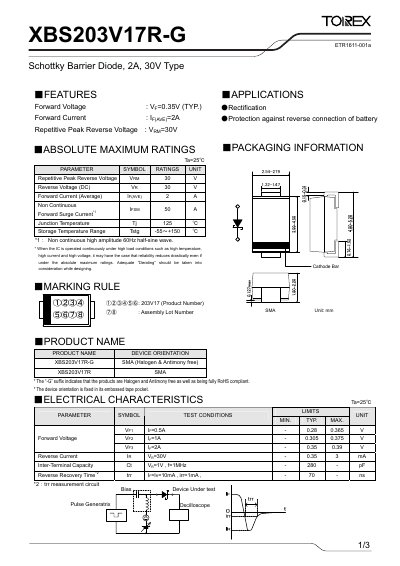

The XBS203V17R-G is a 2 A, 30 V Schottky barrier diode offered by Torex Semiconductor. The datasheet provides detailed electrical parameters, packaging information, and application guidance.
Key features include halogen‑ and antimony‑free construction ("-G" suffix), RoHS compliance, and typical forward voltage of 0.35 V at 2 A. The document also lists limits, ratings, and typical performance curves for various operating temperatures.
| Forward Voltage (typical) | 0.35 V |
|---|---|
| Forward Current (average) | 2 A |
| Repetitive Peak Reverse Voltage | 30 V |
| Reverse Voltage (DC) | 30 V |
| Reverse Current at 30 V | 0.35 mA |
| Inter‑Terminal Capacity | 280 pF |
| Junction Temperature (max) | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
The diode is rated for a repetitive peak reverse voltage of 30 V.
Approximately 0.35 V.
The device can be stored from –55 °C up to +150 °C.
