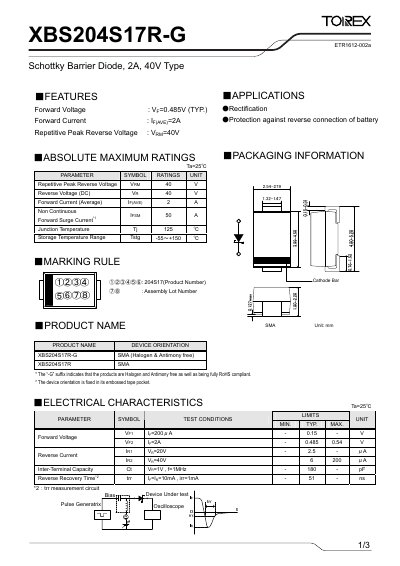

The document describes a 1/3 XBS204S17R-G Schottky Barrier Diode with characteristics of 2A and 40V. It is suitable for rectification and protection against reverse connection of battery.
This datasheet describes the XBS204S17R-G Schottky Barrier Diode, a 2 A, 40 V device offered in a RoHS‑compliant, halogen‑ and antimony‑free package. It includes detailed electrical parameters, absolute maximum ratings, and recommended application areas such as rectification and reverse‑polarity protection.
Key specifications such as forward voltage, reverse voltage, and temperature limits are presented along with typical performance curves. Packaging information, device orientation, and marking rules are also provided to aid in selection and integration.
| Forward Voltage (typical) | 0.485 V |
|---|---|
| Average Forward Current | 2 A |
| Repetitive Peak Reverse Voltage | 40 V |
| Storage Temperature Range | -55 °C to +150 °C |
| Device Orientation | SMA, fixed in embossed tape pocket |
| RoHS Compliance | Halogen & Antimony free |
The average forward current rating is 2 A.
Yes, the “-G” suffix indicates the product is halogen‑ and antimony‑free and fully RoHS compliant.
The typical forward voltage is 0.485 V when the forward current is 2 A.
