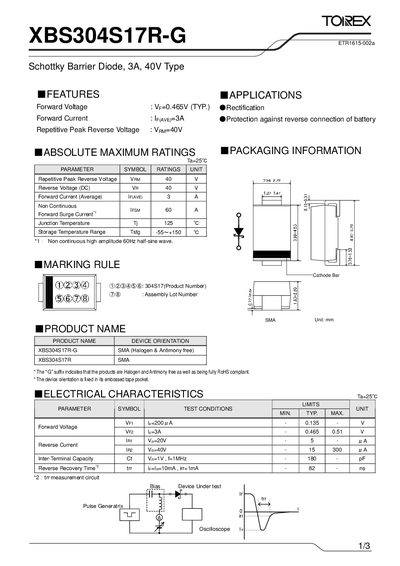

This datasheet provides parameters of XBS304S17R-G Schottky Barrier Diode, including forward voltage, reverse current, reverse recovery time.
The XBS304S17R-G is a 3 A, 40 V Schottky barrier diode offered by Torex Semiconductor Ltd. The device is halogen‑ and antimony‑free (‑G suffix) and fully RoHS compliant. Its orientation is fixed in an embossed tape pocket for automated handling.
The datasheet lists absolute maximum ratings, typical performance curves, and key electrical parameters such as forward voltage, reverse voltage, reverse recovery time, and inter‑terminal capacitance. Graphs illustrate forward current versus voltage, reverse current versus reverse voltage, and temperature‑dependent behavior.
| Forward Voltage (typ) | 0.465 V |
|---|---|
| Forward Current (average) | 3 A |
| Reverse Voltage (DC) | 40 V |
| Junction Temperature | 125 °C |
The diode is rated for a reverse voltage of 40 V.
The “-G” suffix indicates the product is halogen and antimony free and fully RoHS compliant.
Typical forward voltage is 0.465 V.
The storage temperature range is –55 °C to +150 °C.
