XBS013V1DR-G is a Schottky diode with a rated forward current of 100mA and a rated reverse voltage of 30V.

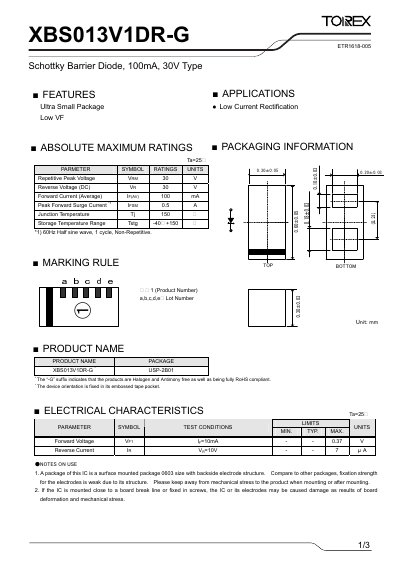

The XBS013V1DR-G is a 0603‑size surface‑mount Schottky barrier diode offered by Torex Semiconductor. It is designed for low‑current rectification applications and features a halogen‑ and antimony‑free construction that meets RoHS requirements.
Key specifications include a typical forward voltage of 0.37 V at 10 mA, a maximum reverse current of 7 µA at 10 V, and a repetitive peak voltage rating of 30 V. The device can handle an average forward current of 100 mA and a surge current of up to 0.5 A, with a junction temperature limit of 150 °C and a storage temperature range of –40 °C to +150 °C. The ultra‑small USP‑2B01 package measures 0.30 mm × 0.20 mm.
| Repetitive Peak Voltage (V_RM) | 30 V |
|---|---|
| Average Forward Current (I_F(AV)) | 100 mA |
| Peak Forward Surge Current (I_FSM) | 0.5 A |
| Storage Temperature Range | -40 °C to +150 °C |
| Package dimensions (Top × Bottom) | 0.30 mm ± 0.05 mm × 0.20 mm ± 0.03 mm |
Yes, the “-G” suffix indicates the product is halogen‑ and antimony‑free and fully RoHS compliant.
It uses the ultra‑small USP‑2B01 surface‑mount package, 0603 size.
