This product is a Schottky diode, model number XBS104V14R-G, with a maximum reverse peak voltage of 40V, a maximum average current of 1A, and a forward voltage drop of 0.365V.

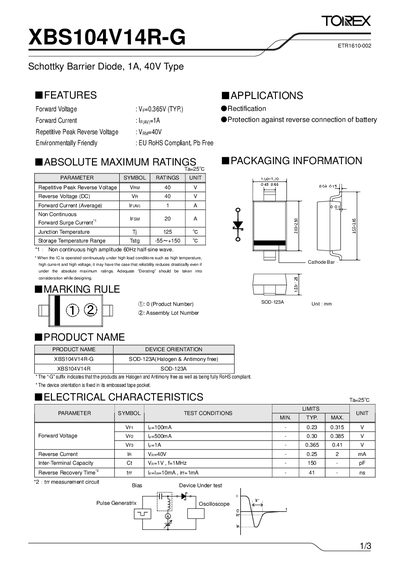

The XBS104V14R-G is a 1 A, 40 V Schottky barrier diode offered by Torex Semiconductor Ltd. It is designed for rectification applications and features a halogen‑ and antimony‑free construction indicated by the “‑G” suffix.
Key specifications include a typical forward voltage of 0.365 V at 1 A, a repetitive peak reverse voltage of 40 V, and compliance with EU RoHS (Pb‑free). The device is supplied in a SOD‑123 package, with a storage temperature range of –55 °C to +150 °C and a junction temperature rating of 125 °C.
| Typical Forward Voltage (Vf) | 0.365 V |
|---|---|
| Maximum Reverse Voltage (VRRM) | 40 V |
| Forward Current (Average) | 1 A |
| Reverse Current (max at 40 V) | 2 mA |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Inter‑Terminal Capacity | 150 pF |
The diode can withstand a repetitive peak reverse voltage of 40 V.
It indicates the product is halogen‑ and antimony‑free and fully RoHS compliant.
The device can be stored from –55 °C up to +150 °C.
