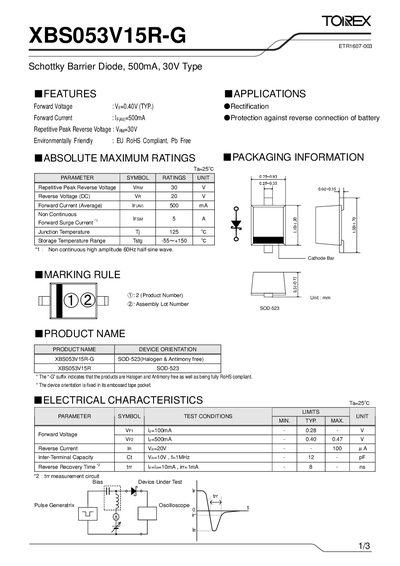

XBS053V15R-G Schottky Barrier Diode, rated forward voltage 30V, rated forward current 500mA, working temperature range -55～+150℃, package for SOD-523.
The XBS053V15R-G is a 500 mA, 30 V Schottky barrier diode offered by Torex Semiconductor Ltd. It is designed for rectification and protection against reverse battery connection, with a halogen‑ and antimony‑free, RoHS‑compliant construction.
Key electrical parameters include a typical forward voltage of 0.40 V at 500 mA, a peak reverse voltage of 30 V, reverse recovery time of 8 ns, and a junction temperature rating of 125 °C. The device is supplied in a SOD‑523 package and meets storage temperature limits from –55 °C to +150 °C.
| Forward Current (average) | 500 mA |
|---|---|
| Peak Reverse Voltage | 30 V |
| Reverse Recovery Time | 8 ns |
| Junction Temperature Rating | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Reverse Current (20 V) | 100 µA |
| Inter‑Terminal Capacity | 12 pF (10 V, 1 MHz) |
The diode can withstand a repetitive peak reverse voltage of 30 V.
Yes, the device is halogen‑ and antimony‑free and meets EU RoHS requirements.
The junction temperature rating is 125 °C.
