XBS104S13R-G Schottky Diode is a 1A 40V Schottky Diode produced by ROHM company in Japan. It features a short reverse recovery time and can be used for rectification and protection against battery reverse connection.
The XBS104S13R-G is a 1 A Schottky barrier diode offered by Torex Semiconductor Ltd. It features a typical forward voltage of 0.49 V, a repetitive peak reverse voltage of 40 V, and is fully RoHS compliant with a halogen‑ and antimony‑free construction.

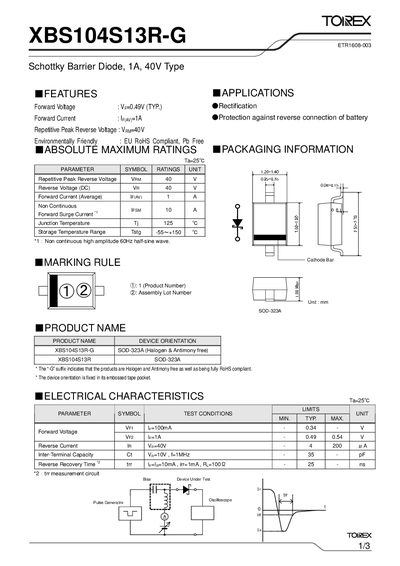

The document provides absolute maximum ratings, electrical limits, typical performance curves, and packaging information for the SOD‑323A package. Legal notices and handling recommendations are also included.
| Forward Voltage (typical) | 0.49 V |
|---|---|
| Repetitive Peak Reverse Voltage | 40 V |
| Reverse Voltage (DC) | 40 V |
| Forward Current (average) | 1 A |
| Forward Surge Current | 10 A |
| Junction Temperature | 125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Inter‑Terminal Capacity | 35 pF |
| Reverse Recovery Time | 25 ns |
The typical forward voltage is 0.49 V.
It is rated for a repetitive peak reverse voltage of 40 V.
Yes, it is fully RoHS compliant and halogen‑ and antimony‑free.
The “-G” suffix shows the product is halogen‑ and antimony‑free and fully RoHS compliant.
