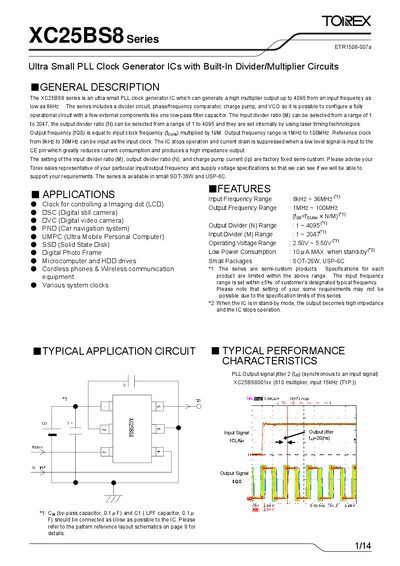

XC25BS8 series ultra small PLL clock generator ICs with built-in divider/multiplier circuits
The XC25BS8 series is an ultra‑small PLL clock generator IC that can multiply an input frequency up to 4095×, providing output frequencies from 1 MHz to 100 MHz. It includes a divider, phase/frequency comparator, charge pump and VCO, requiring only a low‑pass filter capacitor and a few external components.
The devices are offered in SOT‑26W and USP‑6C packages, are ROHS‑compliant, and feature absolute‑maximum ratings, recommended operating conditions, and layout guidelines to ensure low jitter and stable operation in applications such as digital cameras, car navigation, SSDs, and wireless communication.
| Supply Voltage Range | Vop Vss‑0.3 ~ Vpp + 7.0 V |
|---|---|
| Available Packages | SOT‑26W, USP‑6C |
| Maximum Output Current | 50 mA |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Output Rise Time (20‑80%) | 4 ns ~ 8 ns |
The series is offered in SOT‑26W and USP‑6C surface‑mount packages.
The device can operate with a supply voltage from Vss‑0.3 V up to Vpp + 7.0 V.
It is rated for temperatures from –40 °C to +85 °C.
