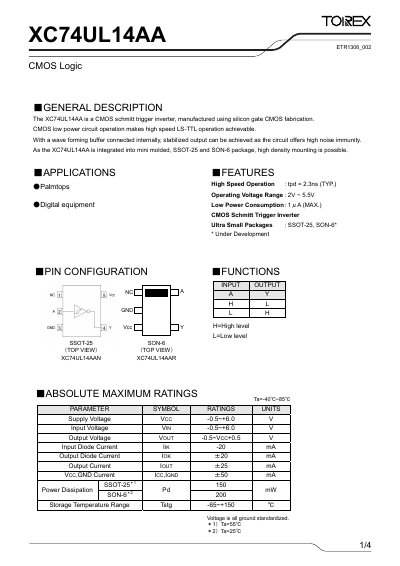

XC74UL14AA is a CMOS schmitt trigger inverter, manufactured using silicon gate CMOS fabrication. CMOS low power circuit operation makes high speed LS-TTL operation achievable. With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immunity. As the XC74UL14AA is integrated into mini molded, SSOT-25 and SON-6 package, high density mounting is possible.
The XC74UL14AA is a CMOS Schmitt‑trigger inverter fabricated with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption, and high noise immunity, making it suitable for portable and digital equipment.
The device is offered in ultra‑small SSOT‑25 and SON‑6 packages and is intended for applications such as palmtops and other digital equipment. The datasheet lists detailed electrical parameters, absolute maximum ratings, and recommended operating conditions.
| Supply Voltage (VCC) | 2 ~ 5.5 V |
|---|---|
| Input Voltage (VIN) | 0 ~ 5.5 V |
| Output Voltage (VOUT) | -0.5 ~ VCC+0.5 V |
| Operating Temperature Range | -40 ~ +85 °C |
| Typical Propagation Delay (tpd) | 2.3 ns |
The device operates with a supply voltage between 2 V and 5.5 V.
It is offered in ultra‑small SSOT‑25 and SON‑6 packages.
The typical propagation delay is 2.3 ns.
