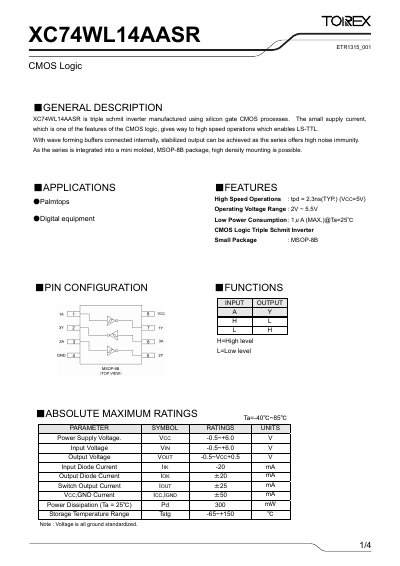

XC74WL14AASR is a triple schmit inverter manufactured using silicon gate CMOS processes. The series offers high noise immunity and features built-in wave forming buffers to achieve stabilized output.
The XC74WL14AASR is a triple Schmitt‑trigger inverter fabricated with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption, and high noise immunity, all within a compact MSOP‑8B package suitable for portable and digital equipment.
Key electrical characteristics include a supply voltage range of 2 V to 5.5 V, typical propagation delay of 2.3 ns, and a maximum power dissipation of 300 mW. The device is rated for operation from –40 °C to +85 °C and is intended for applications such as palmtops and other digital devices. This manual is written in Chinese.
| Supply Voltage (VCC) | 2 V ~ 5.5 V |
|---|---|
| Input Voltage (VIN) | 0 V ~ 5.5 V |
| Output Voltage (VOUT) | 0 V ~ VCC |
| Typical Propagation Delay (tpd) | 2.3 ns |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Static Supply Current | 1 µA (max) |
| Package | MSOP‑8B |
The device operates from 2 V to 5.5 V supply voltage.
Typical propagation delay is 2.3 ns at a 5 V supply.
It is supplied in a miniature MSOP‑8B surface‑mount package.
