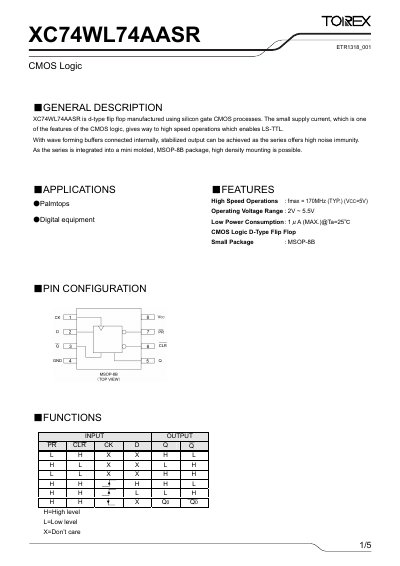

XC74WL74AASR is a d-type flip flop manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL. With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity. As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
The XC74WL74AASR is a silicon‑gate CMOS D‑type flip‑flop designed for high‑speed operation and low power consumption. It is supplied in a compact MSOP‑8B package, enabling high‑density mounting in portable and digital equipment.
Key features include a typical maximum switching frequency of 170 MHz, a supply voltage range of 2 V to 5.5 V, and a static supply current as low as 1 µA. The device is suitable for applications such as palmtops and other digital devices, and it offers robust noise immunity and a wide operating temperature range.
| Maximum switching frequency (fmax) | 170 MHz (typ.) |
|---|---|
| Supply voltage range | 2 V – 5.5 V |
| Static supply current | 1 µA (max) |
| Package type | MSOP‑8B |
| Power dissipation | 300 mW |
The recommended supply voltage range is 2 V to 5.5 V.
The device typically operates up to 170 MHz.
It is supplied in an MSOP‑8B surface‑mount package.
The device is rated for –40 °C to +85 °C.
