XC74WL4066SR is a dual analog switch manufactured using silicon gate CMOS processes. It features small supply current, high speed, low power consumption, and low on resistance.
The XC74WL4066SR is a dual analog switch fabricated with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption, and a low on‑resistance in a compact MSOP‑8B package, making it suitable for high‑density mounting in portable and digital equipment.

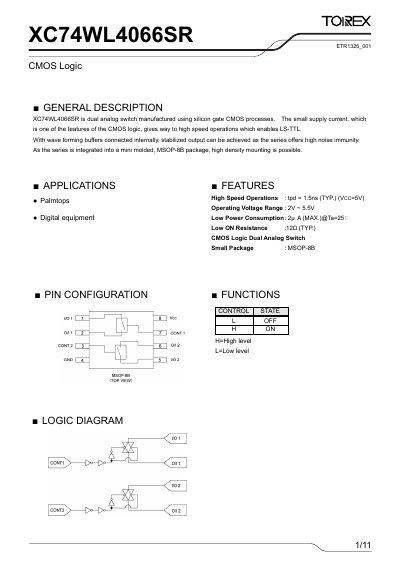

Typical applications include palmtops and other digital devices. The datasheet lists recommended operating conditions, pin configuration, and detailed electrical characteristics to aid designers in integrating the switch into their circuits.
| Supply Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Propagation Delay (tpd) | 1.5 ns typ. |
| ON Resistance (RON) | 12 Ω typ. |
| Input Diode Current (I IK) | -20 mA |
The device operates with a supply voltage from 2 V to 5.5 V.
Typical propagation delay is 1.5 ns when VCC is 5 V.
The typical ON resistance is 12 Ω.
