XC74WL04AASR is a triple inverter manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL. With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity. As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
The XC74WLO4AASR is a triple inverter manufactured using silicon‑gate CMOS processes. It offers low supply current, high‑speed operation, and strong noise immunity, making it suitable for digital equipment and portable devices. The device is supplied in a compact MSOP‑8B package for high‑density mounting.

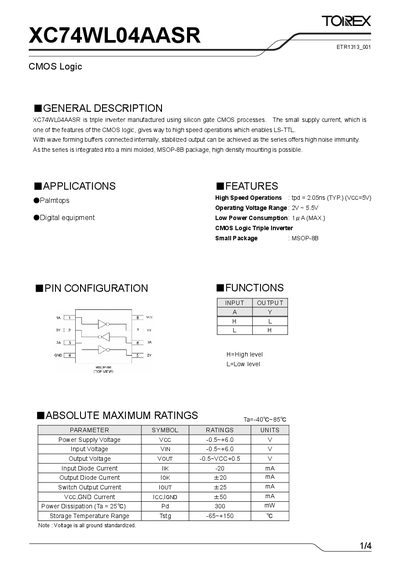

The datasheet provides absolute maximum ratings, recommended operating conditions, electrical and noise characteristics, and legal notices. It includes pin configuration, voltage limits, current ratings, and timing parameters needed for design integration.
| Operating Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Supply Voltage (Vcc) | 2 V ~ 5.5 V |
| Input Voltage (VIN) | 0 V ~ 5.5 V |
| Output Voltage (Vout) | 0 V ~ VCC |
| Power Dissipation (25 °C) | 300 mW |
| Storage Temperature Range | -65 °C ~ +150 °C |
| Package | MSOP‑8B |
| Absolute Maximum Power Supply Voltage | -0.5 V ~ +6.0 V |
The device is specified for a supply voltage (Vcc) of 2 V to 5.5 V.
It is supplied in a miniature MSOP‑8B surface‑mount package.
