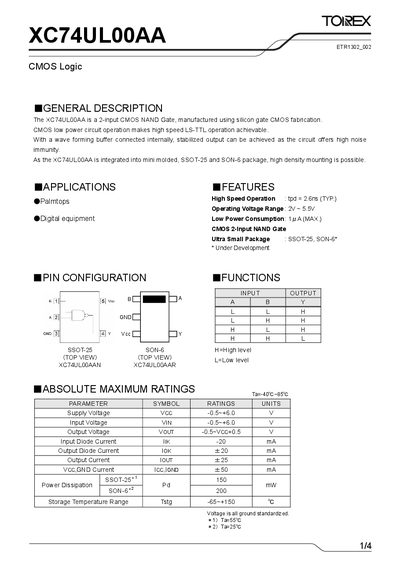

The XC74UL00AA is a 2-input CMOS NAND Gate, manufactured using silicon gate CMOS fabrication. CMOS low power circuit operation makes high speed LS-TTL operation achievable. With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immunity. As the XC74UL00AA is integrated into mini molded, SSOT-25 and SON-6 package, high density mounting is possible.
The XC74UL00AA is a 2‑input CMOS NAND gate fabricated with silicon‑gate CMOS technology. It provides high noise immunity and can operate at LS‑TTL speeds while maintaining low power consumption.
The device is supplied in ultra‑small SSOT‑25 and SON‑6 packages for high‑density mounting and is suitable for palmtops, digital equipment, and other compact applications. Electrical specifications include a 2 V‑5.5 V operating range, propagation delay of 2.6 ns (typ), and an operating temperature range of –40 °C to +85 °C.
| Operating Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Propagation Delay (tpd) | 2.6 ns (typ) |
| Package Types | SSOT‑25, SON‑6 |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Output Current (Iout) | 25 mA |
The typical propagation delay is 2.6 ns.
It operates from 2 V to 5.5 V.
The device is offered in SSOT‑25 and SON‑6 packages.
It is rated for –40 °C to +85 °C.
