XC74WL08AASR is a dual 2-input AND Gate manufactured using silicon gate CMOS processes. With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity. The series is integrated into a mini molded, MSOP-8B package, therefore it has high density mounting advantages.
The XC74WL08AASR is a dual 2‑input AND gate fabricated with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption, and high noise immunity, and is supplied in a compact MSOP‑8B package for high‑density mounting.

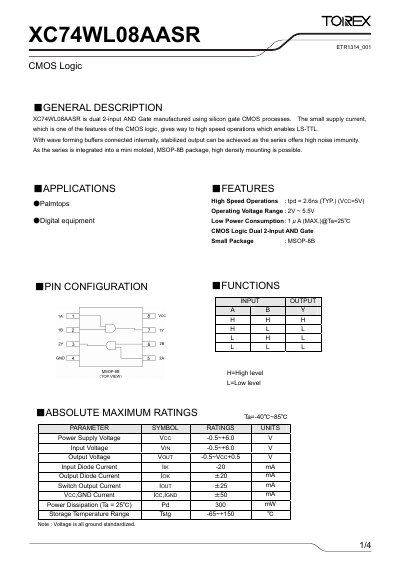

The datasheet provides detailed electrical parameters, recommended operating conditions, absolute maximum ratings, and test circuit information, helping designers integrate the device into portable and digital equipment. This manual is written in Chinese.
| Supply Voltage (VCC) | 2 V ~ 5.5 V |
|---|---|
| Input Voltage (VIN) | 0 V ~ 5.5 V |
| Output Voltage (VOUT) | 0 V ~ VCC |
| Storage Temperature Range | -65 °C ~ +150 °C |
| Typical Propagation Delay (tpd) | 2.6 ns (typ.) at VCC=5 V |
| Low Power Consumption | 1 µA (max) @ 25 °C |
| Package | MSOP‑8B |
The device operates from 2 V to 5.5 V supply voltage.
Typical propagation delay is 2.6 ns when VCC is 5 V.
It is supplied in an MSOP‑8B surface‑mount package.
