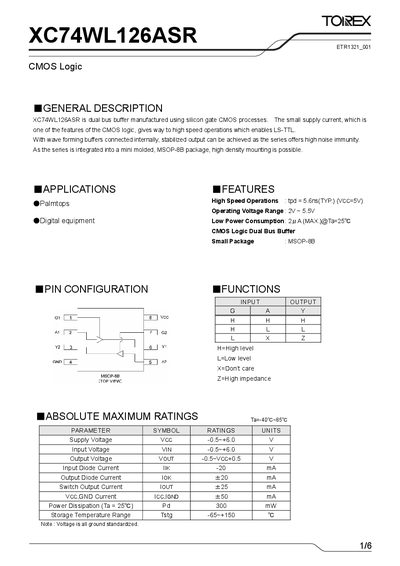

XC74WL126ASR is a dual bus buffer manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL. With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity. As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
The XC74WL126ASR is a dual‑bus buffer implemented with silicon‑gate CMOS technology. It offers low supply current, high‑speed operation (typical propagation delay 5.6 ns at VCC = 5 V), and high noise immunity, packaged in an 8‑pin MSOP‑8B for high‑density mounting.
The document provides absolute maximum ratings, recommended operating conditions, detailed electrical and switching characteristics, pin configuration, and test circuit examples to aid designers in integrating the device into digital equipment such as palmtops and other low‑power applications.
| Operating Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Typical Propagation Delay (tpd) | 5.6 ns (typ.) |
| Power Dissipation (Ta = 25 °C) | 300 mW |
| Storage Temperature Range | -65 °C ~ +150 °C |
| Supply Voltage (VCC) | 2 V ~ 5.5 V |
| Package | MSOP‑8B (8‑pin) |
| Input Capacitance (CIN) | 4 pF ~ 10 pF |
| Output Capacitance (COUT) | 6 pF |
The device operates from 2 V to 5.5 V.
The typical propagation delay is 5.6 ns.
It can dissipate up to 300 mW.
It is supplied in an 8‑pin MSOP‑8B package.
