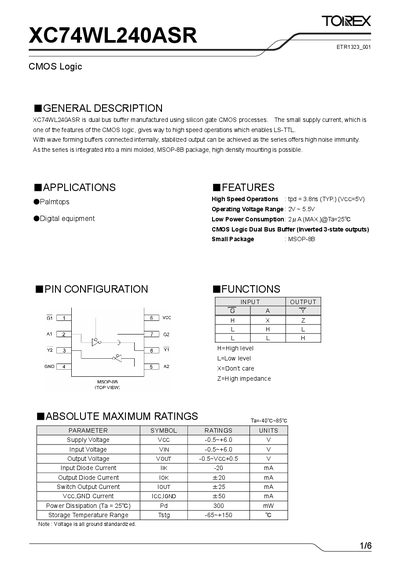

The XC74WL240ASR is a dual bus buffer manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL. With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity. As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
The XC74WL240ASR is a dual‑bus buffer implemented in a silicon‑gate CMOS process. It offers low supply current, high‑speed operation, and high noise immunity, making it suitable for palmtops and digital equipment. The device is supplied in a compact MSOP‑8B package for high‑density mounting.
The datasheet details absolute maximum ratings, recommended operating conditions, and electrical characteristics such as propagation delays, output enable/disable times, and noise performance. It also includes test circuits and notes on usage limits and safety considerations.
| Operating Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Supply Voltage (VCC) | 2 ~ 5.5 V |
| Low Power Consumption | 2 µA (MAX) |
| Package | MSOP‑8B |
| Power Dissipation (Ta = 25 °C) | 300 mW |
| Storage Temperature Range | -65 °C ~ +150 °C |
| Typical Output Enable Time (VCC=3.3 V) | 5.4 ns |
The device operates from 2 V to 5.5 V.
It is supplied in an MSOP‑8B surface‑mount package.
Maximum power dissipation is 300 mW.
