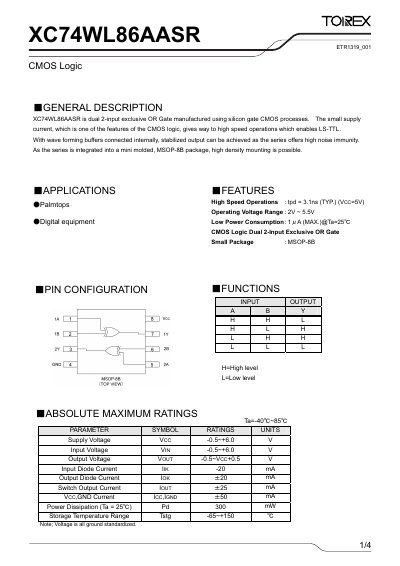

XC74WL86AASR is a dual 2-input exclusive OR Gate manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL. With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity. As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
The XC74WL86AASR is a dual 2‑input exclusive‑OR gate fabricated with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption and high noise immunity, making it suitable for portable and digital equipment. The device is supplied in a compact MSOP‑8B package for high‑density mounting.
Key features include a supply voltage range of –0.5 V to +6.0 V, typical propagation delay of 3.1 ns, and a maximum power dissipation of 300 mW at 25 °C. Detailed electrical characteristics, recommended operating conditions and application notes are provided in the following sections. This manual is written in Chinese.
| Supply Voltage Range | -0.5 V to +6.0 V |
|---|---|
| Input Voltage Range | -0.5 V to +6.0 V |
| Output Voltage Range | -0.5 V to +0.5 V |
| Power Dissipation (Ta = 25 °C) | 300 mW |
| Typical Propagation Delay (tpd) | 3.1 ns |
| Package | MSOP‑8B |
| Operating Temperature Range | -40 °C to +85 °C |
The device operates with a supply voltage from –0.5 V to +6.0 V.
The typical propagation delay is 3.1 ns.
It is supplied in a compact MSOP‑8B package.
Maximum power dissipation is 300 mW at 25 °C.
