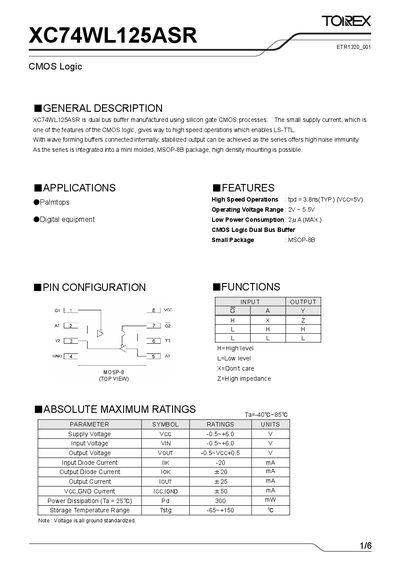

XC74WL125ASR is a dual bus buffer manufactured using silicon gate CMOS processes.
The XC74WL125ASR is a dual‑bus buffer implemented with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption, and high noise immunity, and is supplied in a compact MSOP‑8B package for high‑density mounting.
Typical applications include palmtops and other digital equipment. The manual lists recommended operating conditions, absolute maximum ratings, and detailed electrical characteristics such as propagation delay, input/output voltage levels, and timing parameters.
| Operating Voltage Range | 2V ~ 5.5V |
|---|---|
| Propagation Delay (tpd) | 3.8 ns typ. |
| Low Power Consumption | 2.4 µA max. |
| Package | MSOP‑8B |
| Operating Temperature | -40°C to 85°C |
The device operates from 2 V up to 5.5 V.
The typical propagation delay is 3.8 ns.
It is supplied in an MSOP‑8B surface‑mount package.
