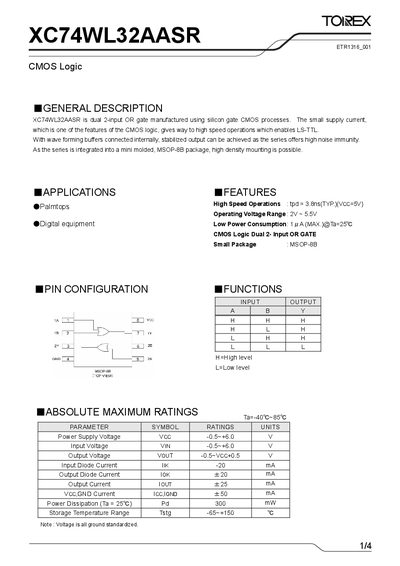

XC74WL32AASR is a dual 2-input OR gate manufactured using silicon gate CMOS processes.
The XC74WL32AASR is a dual 2‑input OR gate implemented with silicon‑gate CMOS technology. It offers low supply current, high‑speed operation, and high noise immunity, and is supplied in a compact MSOP‑8B package for high‑density mounting.
Typical applications include palmtops and other digital equipment requiring low power consumption and fast switching. Recommended operating conditions specify a supply voltage of 2 V to 5.5 V, input voltage range 0 V to 5.5 V, and an operating temperature range of –40 °C to +85 °C.
| Supply Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Operating Temperature Range | -40 °C ~ +85 °C |
| Package | MSOP‑8B |
| Propagation Delay (tpd) | 3.8 ns (typ) at Vcc=5 V |
| Static Supply Current (Icc) | 1.4 µA (max) at 25 °C |
It is supplied in an MSOP‑8B surface‑mount package.
The input voltage can range from 0 V to 5.5 V.
The device can tolerate a supply voltage up to +6.0 V.
It is specified for –40 °C to +85 °C.
