XC74WL241ASR is a dual bus buffer manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, allows for high-speed operations that enable LS-TTL. With internally connected wave forming buffers, stabilized output can be achieved, offering high noise immunity. The series is integrated into a mini molded MSOP-8B package, allowing for high-density mounting.
The XC74WL241ASR is a dual‑bus buffer implemented in a silicon‑gate CMOS process. It offers low supply current, high‑speed operation (tpd ≈ 3.8 ns) and high noise immunity, packaged in a miniature MSOP‑8B for dense mounting.

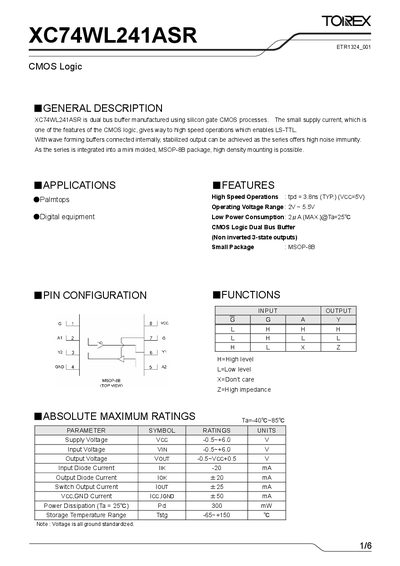

The document provides a general description, pin configuration, absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics including switching and noise parameters, as well as example test circuits.
| Operating Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Typical Propagation Delay (tpd) | 3.8 ns (typ) |
| Power Dissipation (Ta = 25 °C) | 300 mW |
| Storage Temperature Range | -65 °C ~ +150 °C |
| Supply Voltage (Vcc) | 2 V ~ 5.5 V |
The device operates from 2 V to 5.5 V.
Typical propagation delay is 3.8 ns.
Maximum power dissipation is 300 mW.
It is supplied in an MSOP‑8B package.
