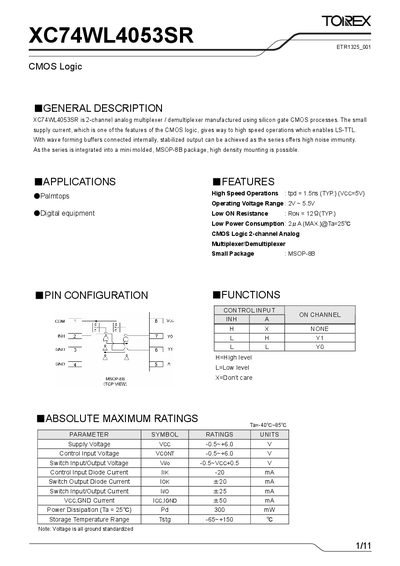

XC74WL4053SR is a 2-channel analog multiplexer/demultiplexer manufactured using silicon gate CMOS processes. The series offers high noise immunity and is integrated in a mini molded, MSOP-8B package for high density mounting.
The XC74WL4053SR from Torex Semiconductor is a CMOS‑based 2‑channel analog multiplexer/demultiplexer designed for high‑speed applications. It features a typical propagation delay of 1.5 ns, low on‑resistance (12 Ω typ), and operates from 2 V to 5.5 V supply voltage in a compact MSOP‑8B package.
The device supports a wide temperature range (‑40 °C to +85 °C) and includes specifications for leakage currents, switching times, and crosstalk. Detailed electrical characteristics, pin configurations, and recommended operating conditions are provided for designers.
| Supply Voltage Range | 2 V ~ 5.5 V |
|---|---|
| Typical Propagation Delay (tpd) | 1.5 ns (typ) |
| On‑Resistance (RON) | 12 Ω (typ) |
| Supply Current | 2 µA ~ 4 µA (max) @ 25 °C |
| Package | MSOP‑8B |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Power Dissipation (Pd) | 300 mW (Ta = 25 °C) |
| Control Input Voltage (VCONT) | 0 V ~ 5.5 V |
| Switch Input/Output Voltage (VILO) | 0 V ~ VCC |
The typical propagation delay (tpd) is 1.5 ns.
The on‑resistance (R_ON) is 12 Ω typical.
It is supplied in an MSOP‑8B surface‑mount package.
The device operates from 2 V to 5.5 V.
