VARISPEED-616G5 Series inverter is a user-friendly inverter that follows the general inverter and is standard equipped with vector control in V/F control.

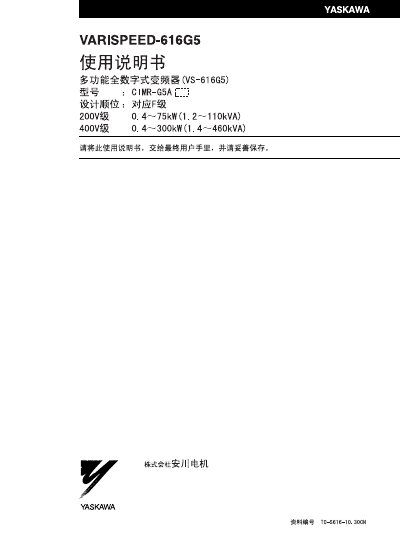

The VARISPEED-616G5 series is a smart, vector‑controlled VFD. The manual covers safety symbols, precautions, and required protective measures before installation. It explains how to mount the unit, connect power and control wiring, and verify grounding.
Detailed chapters describe parameter configuration, trial run procedures, basic and application‑specific operation, fault diagnosis, and regular maintenance. Specification tables list input/output ratings, power ranges, and wiring dimensions for different models. This manual is written in Chinese.
| Input voltage | AC 3‑phase 200‑220 V 50 Hz / 200‑230 V 60 Hz |
|---|---|
| Output voltage | AC 3‑phase 0‑230 V, 1.2 kVA, 3.2 A |
| Power range | 0.4 kW – 300 kW |
| Weight | 3.0 kg |
| Typical model example | CIMR‑G5A20P4 |
Confirm that the input power is OFF, disconnect all power, and ensure the unit is properly grounded before any wiring work.
Choose the wire size according to the specifications shown in tables 3.1 to 3.3 of the manual.
