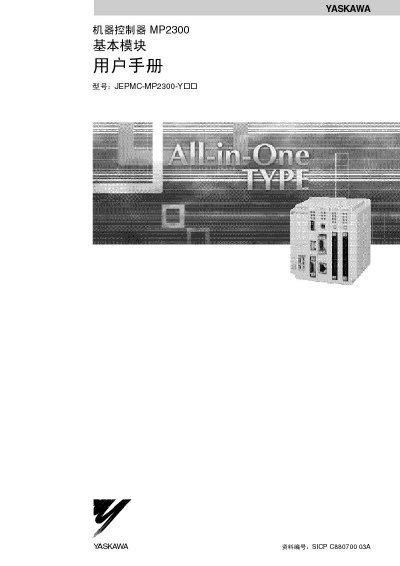

This manual is the user manual for the Yaskawa Electric MP2300 system, which introduces the overview, system construction guide, system installation and debugging guide, module specifications, installation, wiring, basic system operation, motion parameters, motion command related parameters, absolute position detection, maintenance and inspection, fault repair and other contents
This manual describes the MP2300 system, including its overall architecture, module specifications, installation and wiring procedures, basic motions, motion parameters, command parameters, absolute position detection, maintenance checks, fault troubleshooting, and safety precautions. It also lists related manuals and provides detailed hardware specifications for each module.
Safety symbols, handling instructions, and environmental restrictions are highlighted to ensure safe operation. The document includes a comprehensive index and revision history for reference. This manual is written in Chinese.
| CPU I/O connector part number | JEPMC-W2060 |
|---|---|
| External I/O connector part number | JEPMC-W206 |
| Supported communication modules | 217IF, 218IF, 260IF, 261IF |
No, standard USB cables sold on the market must not be used; only the specified standard cables should be used.
Transfer the program and parameters from the old MP2300 to the new one before starting operation.
The manual uses symbols to indicate important items, warnings, cautions, notes, examples, and explanations of terms.
