This manual introduces the technical characteristics, usage methods, installation methods, etc. of CIMR-TAV, CIMR-TBV, CIMR-TTV AC Drive.

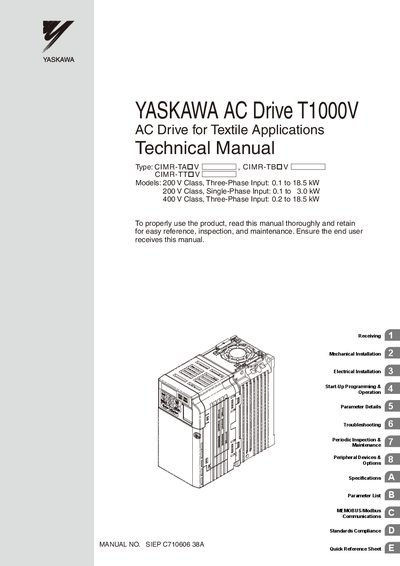

This technical manual covers all aspects of the Yaskawa T1000V AC Drive, including safety guidelines, mechanical and electrical installation, start‑up programming, parameter configuration, and routine maintenance. It is intended for technicians and engineers who install, commission, or service the drive in textile machinery.
The document includes detailed wiring diagrams, parameter lists, MEMOBUS/Modbus communication settings, quick reference sheets, and a comprehensive troubleshooting section with fault codes and solutions. Compliance with European and UL standards is also addressed.
| Drive Type | CIMR‑TADV |
|---|---|
| 200 V Class Single‑Phase Power Range | 0.1 to 3.0 kW |
| 200 V Class Three‑Phase Power Range | 0.1 to 18.5 kW |
| 400 V Class Three‑Phase Power Range | 0.2 to 18.5 kW |
Use the removable terminal block with a parameter backup function to copy the settings to the new drive.
The drive complies with European standards (see page 416) and UL standards (see page 422).
