The MP2400 controller is an upgraded product of the MP2000 controller. The controller has a variety of interfaces and supports a variety of communication protocols, such as MODBUS-RTU, MODBUS-TCP, ETHERNET, etc., and can be connected to a variety of peripherals.

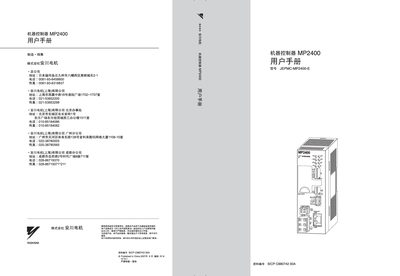

This manual covers the MP2400 machine controller, describing its overall functions, CPU and communication capabilities, and the various optional modules that can be used with it. It includes a detailed specification overview, safety guidelines, installation and wiring procedures, and information on Ethernet communication.
Later sections explain system configuration, fault diagnosis, and repair methods, with reference tables and signal naming conventions. The document also lists related controller series and provides cross‑reference information for other YASKAWA products. This manual is written in Chinese.
| Model number | JEPMC-MP2400-E |
|---|
The manual states that the internal parts of the MP2400 must never be touched and that emergency stop should be used immediately if the machine is connected.
When the controller is connected to the machine, the operator can activate the emergency stop at any time to halt operation.
The manual requires the use of the specified power source for the controller.
