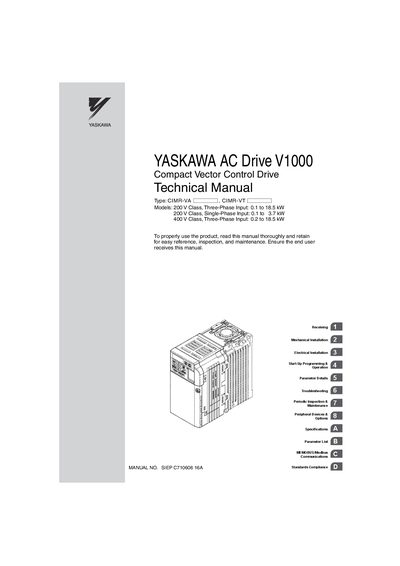

This document is about the YASKAWA AC Drive V1000 Compact Vector Control Drive technical manual. The manual provides detailed information on the mechanical installation, electrical installation, start-up programming and operation, parameter details, troubleshooting, periodic inspection and maintenance, peripheral devices and options of the product. The product includes multiple models suitable for different input voltages and power ranges. The manual emphasizes the importance of properly using, reading, and retaining the product.
This technical manual covers all aspects of the Yaskawa V1000 AC Drive, including mechanical and electrical installation, start‑up programming, parameter configuration, and peripheral options. Safety information, wiring diagrams, and detailed procedures are presented to ensure correct and safe integration of the drive.
The document also contains extensive troubleshooting guidance, periodic inspection and maintenance schedules, and specifications for the various drive models. Users can reference the MEMOBUS/Modbus communication settings, standards compliance, and detailed fault codes to diagnose and resolve issues efficiently.
| 200 V Class – Three‑Phase Input Power | 0.1 to 18.5 kW |
|---|---|
| 200 V Class – Single‑Phase Input Power | 0.1 to 3.7 kW |
| 400 V Class – Three‑Phase Input Power | 0.2 to 18.5 kW |
The manual begins with a Preface & General Safety section and includes safety messages, drive‑label warnings, and safety symbols throughout the document.
Follow the IP20/Open‑Chassis Cover Removal and Installation procedure described in the Mechanical Installation chapter.
Use the Auto‑Tuning procedure outlined in the Start‑Up Programming & Operation section, which includes flowcharts, fault codes, and input data for auto‑tuning.
