Start here

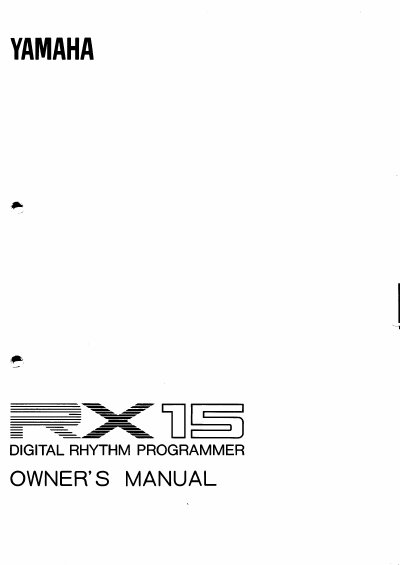

Yamaha RX-15 Digital Rhythm Programmer Owner's Manual
The Yamaha RX-15 is a digital rhythm programmer featuring a high-quality PCM sound source with 15 different sounds. It allows users to create and connect partial rhythm patterns to form entire songs, with independent control over level, accent, and stereo positioning for each sound.
The unit includes a 16-character LCD display and a microprocessor-controlled design for easy programming via switches and sliders. It supports MIDI input and output for connection with external devices and offers a large memory capacity for up to 100 patterns and 10 songs.
Yamaha RX15 specifications
| PCM Sound Source | 8 quantizing bits (exponential data compression equivalent to 14 bits) |
|---|---|
| Memory Capacity | 4 state-of-the-art 256 kilo-bit ROM memory chips |
| Number of Sounds | 15 different sounds |
| Display | 16 character LCD |
| Pattern Memory | Up to 100 patterns |
| Song Memory | 10 songs |
| Bar Division | Up to 1/192 |
Source: Yamaha RX-15 Digital Rhythm Programmer Owner's Manual
All Yamaha RX15 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the purpose of the rhythm patterns provided in this manual?
The patterns can be used as they are or as a basis for creating original rhythms using the STEP/WRITE function.
How many preprogrammed rhythm patterns are included in the RX11/15?
There are 36 popular rhythm patterns preprogrammed into the device, designated by pattern numbers.
What is the RX-15?
The RX-15 is a digital rhythm programmer that uses a sophisticated PCM sound source to create rhythm patterns indistinguishable from live acoustic percussion instruments.
How many patterns and songs can be stored?
The RX-15 can memorize up to 100 patterns and 10 songs.
