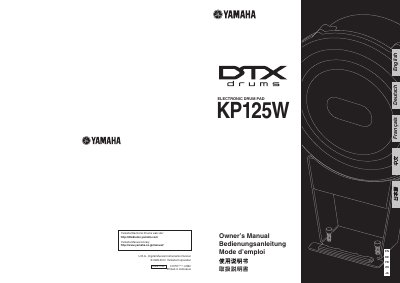

Yamaha KP125W Electronic Drum Pad Owner's Manual
The Yamaha KP125W is an electronic drum pad designed for use with DTX series sound modules. It features a piezo trigger sensor and includes a stereo pickup cable for connection. The device comes with legs, rubber feet, and a pedal for mounting and operation.
Read onlineYamaha KP125W specifications
| Dimensions (assembled) | 480 x 220 x 510 mm |
|---|---|
| Weight | 6.2 kg |
| Sensing Method | Piezo trigger sensor |
| Output Interface | Standard stereo pickup jack |
All Yamaha KP125W documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the assembled dimensions and weight of the KP125W?
The assembled drum pad measures 480 mm long, 220 mm wide, and 510 mm high, with a weight of 6.2 kg.
How should the KP125W be stored if it is not connected to a foot pedal?
You must disconnect the cable from the sound source module and lay the pad unit flat with the striking surface facing up.
How do I prevent double triggering when playing?
To prevent double triggering, ensure the output level is not too high; if necessary, reduce the volume using the level regulator.
Can I use a single-channel pickup cable with this pad?
Yes, if used as a standalone pad without additional pads, a single-channel pickup line can be used for connection.
