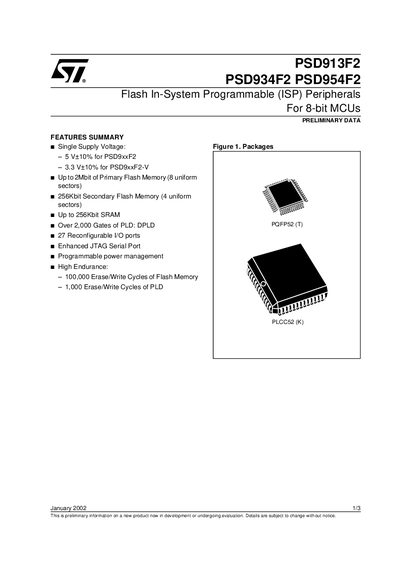

ST PSD913D2/PSD934F2/PSD954F2 handbook
The PSD9XX family (PSD913F2, PSD934F2, PSD954F2) offers configurable memory systems for 8‑bit microcontrollers, featuring up to 2 Mbit of primary flash, a secondary 256 Kbit flash, up to 256 Kbit SRAM, over 2,000 PLD gates, and 27 reconfigurable I/O ports. Power supply options include 5 V ±10% and 3.3 V ±10% versions.
Programming can be performed in‑system via an IEEE‑1149.1 compliant JTAG interface (ISP) or in‑application using the MCU (IAP). The devices include a programmable power‑management unit with automatic power‑down, high endurance flash (100 k erase/write cycles), and PLD endurance of 1 k cycles, making them suitable for flexible embedded designs.
STMicroelectronics PSD934F2 specifications
| Single Supply Voltage (3.3 V version) | 3.3 V ±10% |
|---|---|
| Primary Flash Memory | Up to 2 Mbit |
| Secondary Flash Memory | 256 Kbit |
| SRAM | Up to 256 Kbit |
| Programmable Logic Gates | Over 2,000 gates |
| Flash Endurance | 100,000 erase/write cycles (minimum) |
| PLD Endurance | 1,000 erase/write cycles (minimum) |
| Data Retention | 15 years |
| Standby Current (5 V devices) | as low as 50 µA |
All STMicroelectronics PSD934F2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What programming interfaces are supported by the PSD9XX devices?
The devices support In‑System Programming via a JTAG interface and In‑Application Programming using the host microcontroller.
How many erase/write cycles are guaranteed for the flash memory?
The flash memory is guaranteed for a minimum of 100,000 erase/write cycles.
How many erase/write cycles can the flash memory and PLD handle?
The flash memory is rated for at least 100,000 erase/write cycles, while the PLD is rated for at least 1,000 cycles.
From: STMicroelectronics PSD913F2/PSD934F2/PSD954F2 Preliminary Information
What is the maximum primary flash memory size for the PSD9xxF2 devices?
Each device can contain up to 2 Mbit of primary flash memory.
What is the endurance of the flash memory in the PSD9xxF2 devices?
The flash memory is rated for a minimum of 100,000 erase/write cycles.
