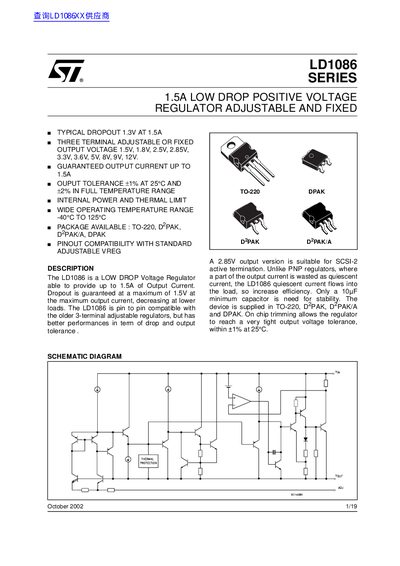

STMicroelectronics LD1086 Series 1.5A Low Drop Positive Voltage Regulator Datasheet
The LD1086 series is a low dropout voltage regulator capable of providing up to 1.5A of output current with a typical dropout of 1.3V. It is pin-to-pin compatible with standard adjustable regulators but offers better performance regarding dropout and output tolerance. The device is available in fixed output voltages (1.5V to 12V) or adjustable configurations.
Read onlineSTMicroelectronics LD1086 specifications
| Output Current | 1.5A |
|---|---|
| Typical Dropout Voltage | 1.3V |
| Operating Temperature Range | -40°C to 125°C |
| Available Packages | TO-220, DPAK, D2PAK/A |
| Quiescent Current | 5 to 10 mA |
| Short Circuit Current | 1.5 to 2 A |
Source: STMicroelectronics LD1086 Series 1.5A Low Drop Positive Voltage Regulator Datasheet
All STMicroelectronics LD1086 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the LD1086?
The LD1086 is able to provide up to 1.5A of Output Current.
From: STMicroelectronics LD1086 Series 1.5A Low Drop Positive Voltage Regulator Datasheet
Is the LD1086 pin compatible with standard adjustable regulators?
Yes, the LD1086 is pin to pin compatible with the older 3-terminal adjustable regulators.
From: STMicroelectronics LD1086 Series 1.5A Low Drop Positive Voltage Regulator Datasheet
