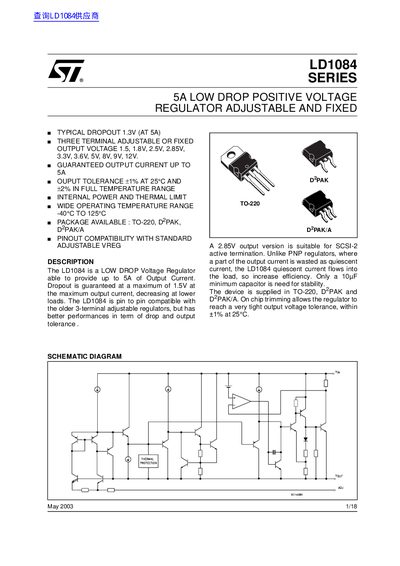

STMicroelectronics LD1084 Series 5A Low Drop Positive Voltage Regulator Datasheet
The LD1084 Series is a low dropout voltage regulator capable of providing up to 5A of output current with a typical dropout of 1.3V. It is available in both adjustable and fixed output voltage configurations (1.5V to 12V) and is pin-compatible with standard adjustable regulators. The device is supplied in TO-220, D2PAK, and D2PAK/A packages and operates over a wide temperature range of -40°C to 125°C.
Read onlineSTMicroelectronics LD1084 specifications
| Output Current | Up to 5A |
|---|---|
| Typical Dropout | 1.3V |
| Operating Temperature Range | -40°C to 125°C |
| Output Voltage Tolerance | +1% at 25°C |
| Available Packages | TO-220, D2PAK, D2PAK/A |
| Fixed Output Voltages | 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 3.6V, 5V, 8V, 9V, 12V |
