Siemens RDF310 Manuals

This document provides information on the mounting location and wiring diagrams of RDF310 and RDF410 Building Technologies/HVAC products. It also includes dimensions for semi-flush-mounting and descriptions of related components.

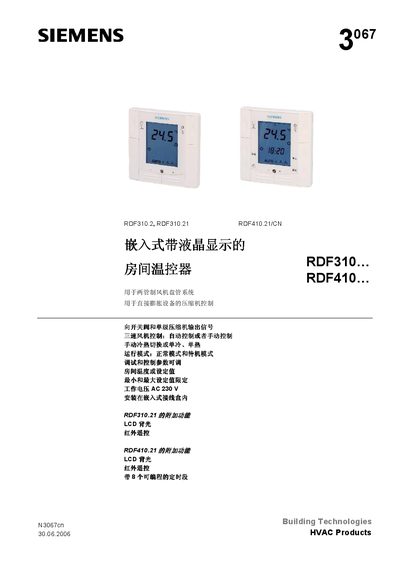

RDF310.2, RDF310.21 and RDF410.21 are embedded room thermostats with LCD display for two pipe fan coil systems and direct expansion devices. They can control three-speed fan, two-pipe valve actuator and single-stage compressor.

RDF310.2 and RDF410.21 are embedded room thermostats with LCD display, designed for single-cooling or single-heating systems. They can be used to control the temperature of single rooms and areas, which are heated and cooled by two-pipe fan coil units or single-stage compressor direct expansion devices. The controller controls a three-speed fan, a water valve actuator in two-pipe or a single-stage compressor in direct expansion devices. The thermostat acquires room temperature via an integrated sensor and maintains the set temperature by outputting a switching signal to control the valve or compressor.
