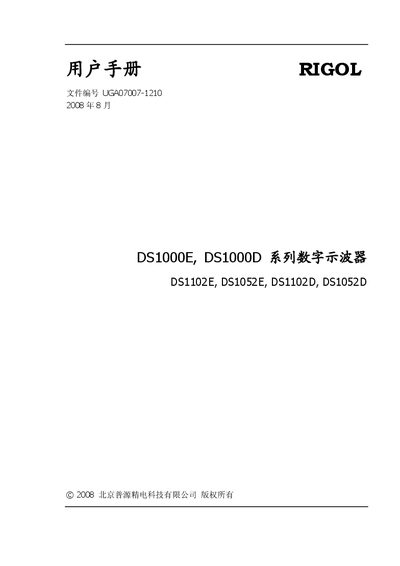

RIGOL DS1000E DS1000D series digital Show Wave Implement DS1102E DS1052E DS1102D DS1052D user manual
This manual covers general safety information, basic and advanced operation procedures, and detailed specifications for the DS1000E and DS1000D series digital oscilloscopes. It includes sections on front‑panel functions, probe compensation, trigger settings, waveform recording, and troubleshooting.
The document also provides environmental requirements, cleaning and maintenance instructions, and contact information for technical support. Example applications demonstrate how to measure simple signals, use FFT analysis, and perform pass/fail testing. This manual is written in Chinese.
Rigol DS1000D Series specifications
| Bandwidth | 100 MHz (DS1102E/DS1102D), 50 MHz (DS1052E/DS1052D) |
|---|---|
| Input impedance | 1 MΩ ± 2% with 15 pF ± 3 pF |
| Maximum input voltage | 400 V (DC+AC peak) at 1 MΩ |
| Display size | 5.7‑inch (145 mm) TFT LCD |
| Display resolution | 320 × 234 pixels, 64k colors |
| Power supply | 100‑240 VAC, <50 W |
| Dimensions | 303 mm × 154 mm × 133 mm |
| Weight (without packaging) | 2.3 kg |
Source: RIGOL DS1000E/DS1000D Series Digital Oscilloscope User Manual
All Rigol DS1000D Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- RIGOL DS1000E/DS1000D Series Digital Oscilloscope User Manual 149 p
- RIGOL DS1000E DS1000D series digital Show Wave Implement DS1102E DS1052E DS1102D DS1052D user manual 156 p
- Rigol DS1000E/DS1000D Series Digital Oscilloscope User Manual 156 p
- RIGOL DS1000E / DS1000D Series Oscilloscope User Manual 7 p
- RIGOL DS1000E / DS1000D Series Digital Oscilloscope User Manual 7 p
- RIGOL DS1000E / DS1000D Series Digital Oscilloscope User Manual 7 p
- Rigol DS1000E/DS1000D Series Digital Oscilloscope User Manual 156 p
Questions answered in these manuals
What is the maximum input voltage the DS1000E/D series can measure?
The oscilloscope can handle up to 400 V (DC+AC peak) when the input impedance is set to 1 MΩ.
From: RIGOL DS1000E/DS1000D Series Digital Oscilloscope User Manual
What are the bandwidth limits for the different models in the DS1000E/D series?
DS1102E and DS1102D have a 100 MHz bandwidth, while DS1052E and DS1052D are limited to 50 MHz.
From: RIGOL DS1000E/DS1000D Series Digital Oscilloscope User Manual
What is the maximum input voltage the oscilloscope can safely measure?
The maximum input voltage is 400 V (DC+AC peak) when the input impedance is set to 1 MΩ.
From: RIGOL DS1000E DS1000D series digital Show Wave Implement DS1102E DS1052E DS1102D DS1052D user manual
What is the maximum input voltage the oscilloscope can tolerate?
The DS1000E/DS1000D series can safely handle up to 400 V peak (DC + AC) on a 1 MΩ input.
From: Rigol DS1000E/DS1000D Series Digital Oscilloscope User Manual
How many digital channels does the DS1000E/DS1000D series provide?
The series provides sixteen independent digital channels.
From: Rigol DS1000E/DS1000D Series Digital Oscilloscope User Manual
What is the bandwidth of the DS1000E/DS1000D series?
The oscilloscopes provide a maximum bandwidth of 100 MHz.
From: RIGOL DS1000E / DS1000D Series Oscilloscope User Manual
