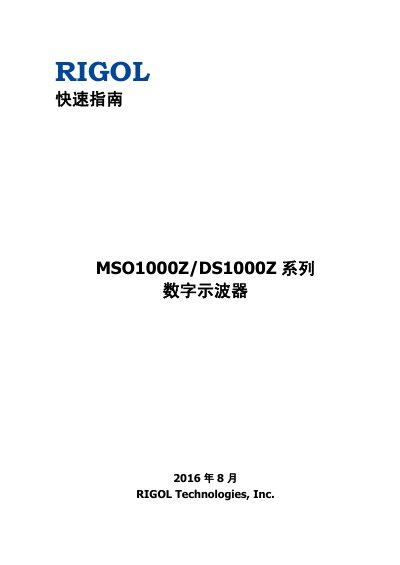

RIGOL MSO1000Z/DS1000Z Series Digital Oscilloscope Quick Start Guide
This document serves as a quick start guide for the RIGOL MSO1000Z/DS1000Z series digital oscilloscopes. It provides essential information regarding safety requirements, operating environment specifications, maintenance and cleaning procedures, and an overview of the documentation structure.
The guide details the steps for a quick start, including preliminary checks, power connection, and probe compensation. It also offers an overview of the front and rear panels, explaining the functions of vertical, horizontal, and trigger controls, as well as the user interface and parameter settings. This manual is written in Chinese.
RIGOL DS1000Z Series specifications
| Bandwidth | 100 MHz, 70 MHz, or 50 MHz |
|---|---|
| Real-time Sampling Rate (Analog) | 1 GSa/s |
| Storage Depth | 24 Mpts |
| Waveform Capture Rate | 30,000 wfms/s (point display) |
| Screen Resolution | 800*480 WVGA |
| Input Voltage Range | 100 V-240 V, 45 Hz-440 Hz |
| Operating Temperature | 0°C to +50°C |
Source: RIGOL DS1000Z Series Digital Oscilloscope User Manual
All RIGOL DS1000Z Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What is the measurement category for this oscilloscope?
The DS1000Z series digital oscilloscope allows measurements in Measurement Category I.
What are the ventilation requirements for operation?
Ensure at least a 10 cm gap on both sides, above, and behind the oscilloscope when using it in a workbench or rack.
Does the DS1000Z series support digital channels?
Yes, the DS1000Z Plus models support up to 16 digital channels after upgrade.
From: RIGOL DS1000Z Series Digital Oscilloscope Product Brochure
What is the standard storage depth of this series?
The standard storage depth is 24 Mpts for single channel operation.
From: RIGOL DS1000Z Series Digital Oscilloscope Product Brochure
What is the input voltage specification for the oscilloscope?
The oscilloscope accepts an AC input power specification of 100-240 V.
From: RIGOL MSO1000Z/DS1000Z Series Digital Oscilloscope Quick Start Guide
What is the recommended ventilation gap for the oscilloscope?
At least 10 cm of clearance should be left on both sides, above, and behind the oscilloscope.
From: RIGOL MSO1000Z/DS1000Z Series Digital Oscilloscope Quick Start Guide
