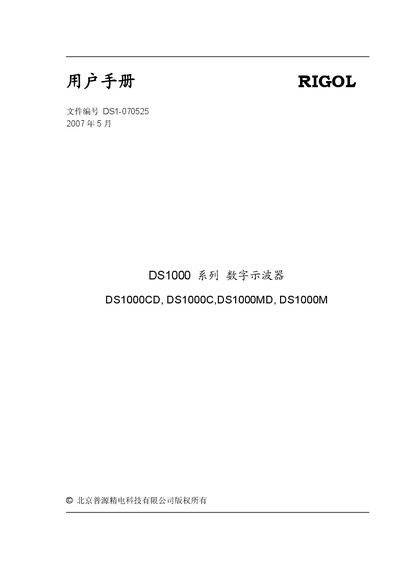

RIGOL DS1-070525 user manual
This manual covers the DS1000 series digital oscilloscopes, including models such as DS1102CD, DS1062CD, DS1042CD, and DS1022CD. It explains safety precautions, front‑panel functions, and detailed setup procedures for vertical, horizontal, trigger, and measurement systems.
The guide also describes advanced features like automatic measurements, FFT analysis, cursor tracking, and the accessories supplied with each unit, helping users efficiently capture and analyze signals. This manual is written in Chinese.
Rigol DS1000 Series specifications
| Bandwidth (DS1102 models) | 100 MHz |
|---|---|
| Bandwidth (DS1062 models) | 60 MHz |
| Bandwidth (DS1042 models) | 40 MHz |
| Bandwidth (DS1022 models) | 25 MHz |
| Analog channels | 2 |
| Digital channels | 16 |
| Real‑time sampling rate | 400 MSa/s |
| Equivalent sampling rate | 25 GSa/s |
| USB storage and printer support | Supported |
Source: RIGOL DS1-070525 user manual
All Rigol DS1000 Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the bandwidth of the DS1102CD model?
The DS1102CD model has a bandwidth of 100 MHz.
How do I automatically set the waveform display on a DS1000 oscilloscope?
Press the AUTO button to instantly obtain suitable waveform display and scale settings.
What is the maximum bandwidth of the DS1102CD model?
The DS1102CD model provides a bandwidth of up to 100 MHz.
What safety precautions should be taken when using the DS1000 series oscilloscope?
Only qualified personnel should perform maintenance, the instrument must be properly grounded, use the correct power cord, keep the cover closed during operation, use the specified fuse, and avoid exposure to moisture or flammable environments.
What is the maximum input voltage the oscilloscope can handle?
The oscilloscope can safely tolerate occasional transient voltages up to 500 Vpk, while the continuous maximum input voltage is 40 V (DC + AC peak).
