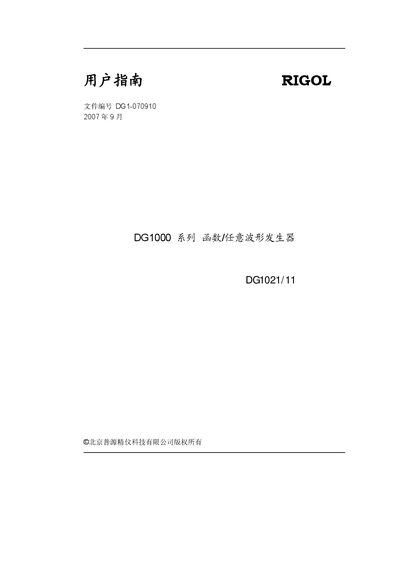

RIGOL DG1000 series Function / Random waveform generator user manual
The manual provides safety guidelines, an overview of the DG1021/DG1011 models, and detailed instructions for basic and advanced operation. It explains how to set up waveforms, modulation, triggering, frequency measurement, and storage functions.
Additional sections cover example applications, system prompts, troubleshooting, service support, and full technical specifications, including accessories and maintenance procedures. This manual is written in Chinese.
RIGOL DG1000 series specifications
| Sampling Rate | 100 MSa/s |
|---|---|
| Vertical Resolution | 14 bits |
| Frequency Range (single channel) | 1 µHz – 200 MHz |
| Output Amplitude | 2 mVpp – 10 Vpp (≤20 MHz), 2 mVpp – 5 Vpp (>20 MHz) |
| Built‑in Arbitrary Waveforms | 48 |
| Display Resolution | 256 × 64 pixels, 4‑level grayscale |
| Power Consumption | < 40 W |
| Operating Temperature | 10 °C – +40 °C |
