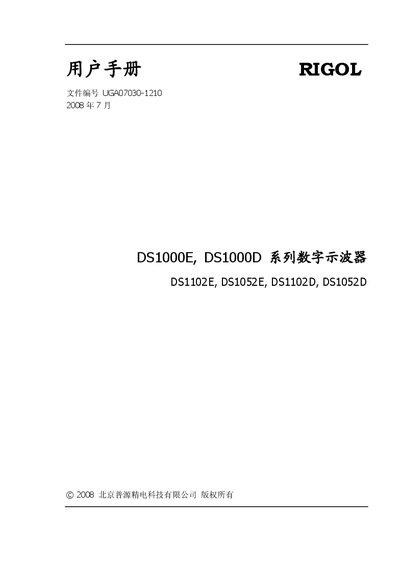

This document is the user manual for RIGOL DS1000E, DS1000D series digital oscilloscopes. The manual provides information on the features and usage of this series of oscilloscopes.
This manual introduces the DS1000E and DS1000D series oscilloscopes, covering safety precautions, front‑panel layout, and basic operation such as probe compensation, auto‑setup, and waveform display. It also details advanced functions like vertical/horizontal system settings, trigger options, digital filtering, and data storage.
The document includes performance specifications (sampling rates, bandwidth, input impedance, display resolution, power requirements) and maintenance guidance, along with troubleshooting tips and contact information for Rigol support. This manual is written in Chinese.
| Real‑time sampling rate | 1 GSa/s, 200 MSa/s |
|---|---|
| Analog channel bandwidth | 100 MHz (DS1102E/D), 50 MHz (DS1052E/D) |
| Digital channels | 16 |
| Display resolution | 320 × 234 pixels |
| Input impedance | 1 MΩ ± 2% in parallel with 15 pF ± 3 pF |
| Maximum input voltage | 400 V (DC+AC peak, 1 MΩ input) |
| Power supply | 100‑240 VAC RMS, 45‑440 Hz |
| Power consumption | < 50 W |
| Dimensions (W × H × D) | 303 mm × 154 mm × 133 mm |
The DS1000E/DS1000D series can safely handle up to 400 V peak (DC + AC) on a 1 MΩ input.
The series provides sixteen independent digital channels.
