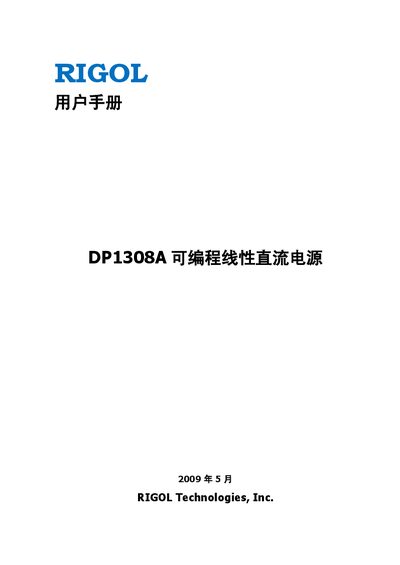

Rigol DP1308A Programmable Linear DC Power Supply User Manual
This manual describes the Rigol DP1308A programmable linear DC power supply, a high‑performance 80 W three‑channel instrument with a 4.3‑inch true‑color TFT display. It explains the front‑panel controls, safety precautions, and the various configuration and remote‑control interfaces.
The document includes a quick‑start guide, detailed front‑panel operation, common fault troubleshooting, performance specifications, and appendices with warranty and contact information. Safety sections cover proper grounding, correct power‑cord use, and environmental restrictions such as avoiding moisture and explosive atmospheres. This manual is written in Chinese.
Rigol DP1308A specifications
| Maximum Output Power | 80 W |
|---|---|
| Output Channels | +6 V/5 A, +25 V/1 A, –25 V/1 A |
| Output Noise | <350 µV rms / 2 mV pp |
| Load Regulation (Voltage) | <0.01 % + 2 mV |
| Linear Regulation (Current) | <0.01 % + 250 µA |
| Operating Temperature Range | 0 °C – 40 °C (full load) |
| Dimensions (W×H×D) | 235 mm × 155 mm × 384 mm |
| Weight | 8.5 kg |
Source: Rigol DP1308A Programmable Linear DC Power Supply User Manual
All Rigol DP1308A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum output power of the DP1308A?
The DP1308A can deliver up to 80 W of total output power.
From: Rigol DP1308A Programmable Linear DC Power Supply User Manual
How many independent output channels does the DP1308A have?
It provides three independent channels: +6 V/5 A, +25 V/1 A, and –25 V/1 A.
From: Rigol DP1308A Programmable Linear DC Power Supply User Manual
How should the DP1308A be grounded for safe operation?
Connect the grounding conductor of the power cord to earth before connecting any input or output terminals; the device must be grounded through its power‑line ground.
From: Rigol DP1308A Programmable Linear DC Power Supply User Manual
