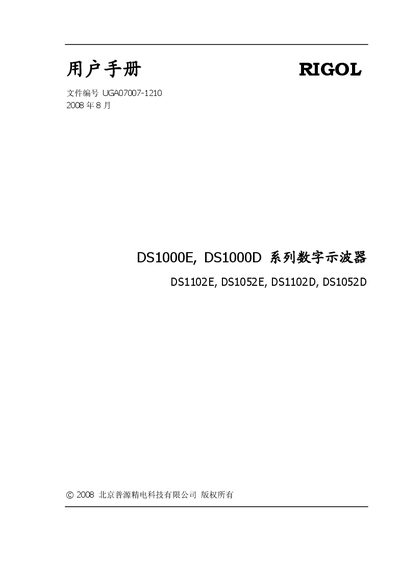

This document is the user manual for RIGOL DS1000E, DS1000D series digital oscilloscopes, published by Beijing Rigol Technologies, Inc. The manual provides an overview of the product's safety precautions, safety terms and symbols, and safety considerations for using the product.
The RIGOL DS1000E/DS1000D series digital oscilloscopes provide a user‑friendly front panel, dual analog channels and optional digital channels. The manual explains safety precautions, basic and advanced operation, and how to use the built‑in functions such as auto‑measure, FFT and waveform recording.
It also contains technical specifications, storage and retrieval procedures, troubleshooting tips, warranty information and maintenance guidelines, helping users get accurate measurements and keep the instrument in good condition. This manual is written in Chinese.
| Bandwidth | 100 MHz (DS1102E/DS1102D), 50 MHz (DS1052E/DS1052D) |
|---|---|
| Input impedance | 1 MΩ ± 2% with 15 pF ± 3 pF |
| Maximum input voltage | 400 V (DC+AC peak) at 1 MΩ |
| Display size | 5.7‑inch (145 mm) TFT LCD |
| Display resolution | 320 × 234 pixels, 64k colors |
| Power supply | 100‑240 VAC, <50 W |
| Dimensions | 303 mm × 154 mm × 133 mm |
| Weight (without packaging) | 2.3 kg |
The oscilloscope can handle up to 400 V (DC+AC peak) when the input impedance is set to 1 MΩ.
DS1102E and DS1102D have a 100 MHz bandwidth, while DS1052E and DS1052D are limited to 50 MHz.
