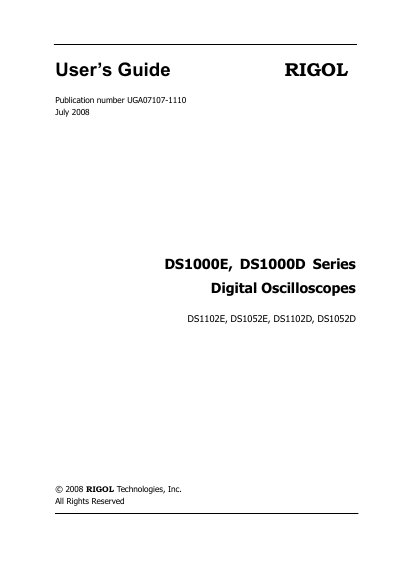

This user's guide describes the functions and usage of the DS1000E and DS1000D series digital oscilloscopes.
This guide covers safety notices, proper handling, and basic setup for the DS1000E/DS1000D series oscilloscopes. It explains grounding, power‑cord requirements, ventilation, and cautions against operating the instrument in wet or explosive environments.
The manual also details the instrument’s features, user interface, measurement capabilities, trigger types, and provides example applications, troubleshooting tips, and a full specification table for the various models in the series.
| Bandwidth | 100 MHz (DS1102E/DS1102D), 50 MHz (DS1052E/DS1052D) |
|---|---|
| Input Impedance | 1 MΩ ± 2% in parallel with 15 pF ± 3% |
| Maximum Input Voltage | 400 V (DC+AC peak, 1 MΩ) / 40 V (DC+AC peak) |
| Power Supply Voltage | 100 ~ 240 VAC RMS, 45 ~ 440 Hz, CAT II |
| Weight (without package) | 2.4 kg |
Access the Utility menu and select the Self‑Calibration option; the instrument will automatically calibrate after the operation.
