Start here
Panasonic WJ-SX550B Matrix Switcher Operating Instructions
This manual provides step-by-step instructions for the Panasonic WJ-SX550B Matrix Switcher, a security system capable of routing up to 128 cameras to 16 monitors. It details the system's modular construction, which allows for flexible expansion using optional boards like the Extension Unit and System Controller. The document explains how to establish tour and group sequences, manage alarms, and control auxiliary equipment such as PTZ heads and zoom lenses.
Read onlinePanasonic WJ-SX550B specifications
| Camera Input Capacity | Up to 128 cameras |
|---|---|
| Monitor Output Capacity | Up to 16 monitors |
| System Controller Capacity | Up to 8 controllers |
| VCR Capacity | Up to 16 VCRs |
| Alarm Input Capacity | Up to 128 alarm signals |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | Below 90% |
| Input Power Source | 120 V AC 60 Hz |
Source: Panasonic WJ-SX550B Matrix Switcher Operating Instructions
All Panasonic WJ-SX550B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Panasonic WJ-SX550B Matrix Switcher Operating Instructions 132 p

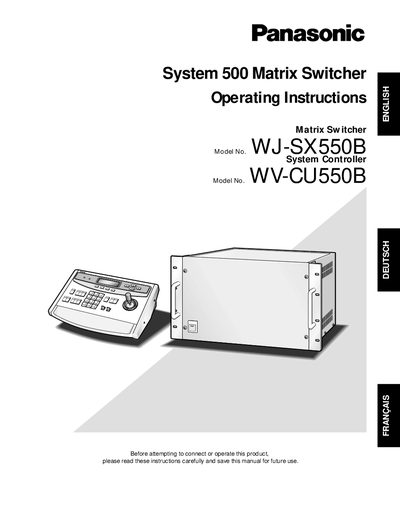

- Panasonic System 500 Matrix Switcher Operating Instructions Matrix Switcher Model No. WJ-SX550B System Controller Model No. WV-CU550B Manual 129 p
- Panasonic WJ-SX550B WV-CU550B System 500 Matrix Switcher Operating Instructions Manual 129 p
Questions answered in these manuals
How many cameras can the WJ-SX550B control?
The system allows for the routing of up to 128 cameras to any one of 16 monitors.
From: Panasonic WJ-SX550B Matrix Switcher Operating Instructions
Can the system control PTZ cameras remotely?
Yes, the pan/tilt head and zoom/focus/iris of the lens can be controlled via a single coaxial cable through a receiver.
From: Panasonic WJ-SX550B Matrix Switcher Operating Instructions
How many cameras can the WJ‑SX550B Matrix Switcher support?
It can connect up to 128 cameras.
What clearance is required from the wall to prevent overheating?
Place the unit at least 5 cm (2 inches) away from the wall.
