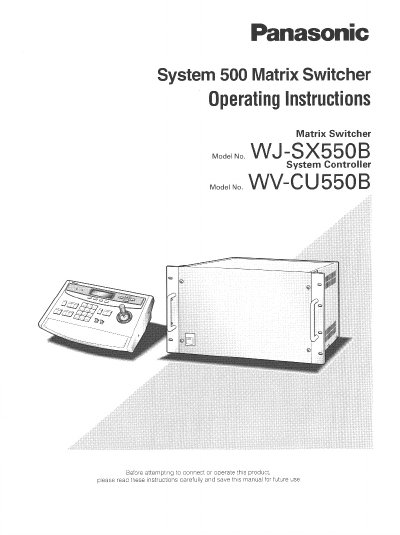

This manual provides step-by-step instructions for the Panasonic WJ-SX550B Matrix Switcher, a security system capable of routing up to 128 cameras to 16 monitors. It details the system's modular construction, which allows for flexible expansion using optional boards like the Extension Unit and System Controller. The document explains how to establish tour and group sequences, manage alarms, and control auxiliary equipment such as PTZ heads and zoom lenses.
| Camera Input Capacity | Up to 128 cameras |
|---|---|
| Monitor Output Capacity | Up to 16 monitors |
| System Controller Capacity | Up to 8 controllers |
| VCR Capacity | Up to 16 VCRs |
| Alarm Input Capacity | Up to 128 alarm signals |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | Below 90% |
| Input Power Source | 120 V AC 60 Hz |
The system allows for the routing of up to 128 cameras to any one of 16 monitors.
Yes, the pan/tilt head and zoom/focus/iris of the lens can be controlled via a single coaxial cable through a receiver.
Up to 8 controllers may be connected to the system.
Yes, the system controller can be substituted by connecting a Personal Computer, though special software is required.
