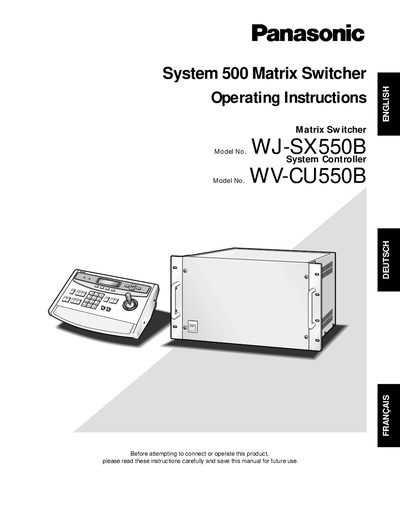

This document is the operating instructions for the System 500 Matrix Switcher, including the model and serial number of the Matrix Switcher and System Controller, as well as the features and characteristics of the product.
This manual provides step‑by‑step guidance for setting up and operating the Panasonic WJ‑SX550B System 500 Matrix Switcher. It includes safety precautions, wiring diagrams, and detailed descriptions of the switcher's features such as routing up to 128 cameras to 16 monitors, alarm handling, and remote control capabilities.
Installation instructions cover connections to cameras, monitors, system controllers, VTRs, and optional accessories. The software setup section explains initial programming via the system controller or PC, while the operating procedures describe daily use. A troubleshooting chapter helps identify common hardware or software issues, and the specifications section lists technical parameters such as power requirements and environmental limits.
