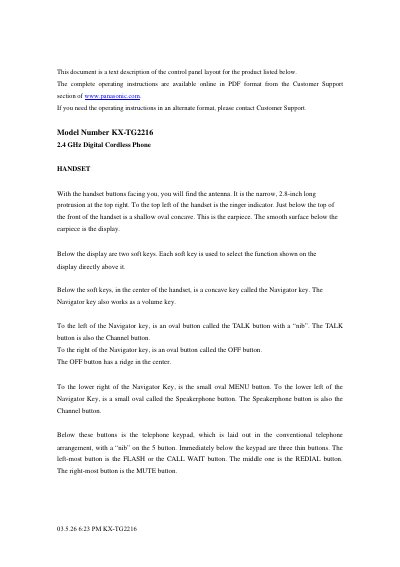

This document describes the control panel layout of KX-TG2216, including the antenna, handset, display, soft keys, navigation key, talk button, power button, menu button, speakerphone button and phone dial button.
This document provides a text description of the control panel layout for the Panasonic KX-TG2216 2.4 GHz Digital Cordless Phone. It details the location and function of buttons, keys, and indicators on the handset, including the Navigator key, TALK button, and keypad.
The document also describes the base unit features, such as the cradle for charging the handset, the HANDSET LOCATOR button, and status indicators for IN USE, CHARGE, and Voice Mail.
The antenna is a narrow protrusion that is 2.8 inches long.
The handset stands upright in the cradle with buttons facing front, and the unit beeps when set properly.
The base unit will not beep because it only signals when the handset is set properly for charging.
